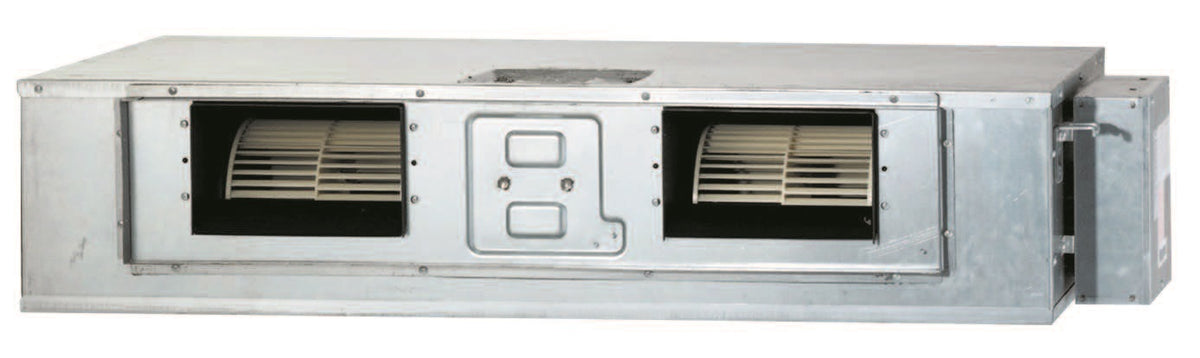

Samsung HSP Duct Inverter Air Conditioner

Product Description

The Samsung HSP (High Static Pressure) Duct Inverter Air Conditioner is a powerful, concealed ducted system engineered to deliver consistent climate control across large commercial or multi-room residential spaces. Designed for longer duct runs or challenging layouts, it generates higher static pressure to push air efficiently to multiple zones. Combined with Digital Inverter technology and eco-friendly R32 refrigerant, the HSP Duct system ensures energy-efficient, whisper-quiet operation while staying fully hidden above ceilings.

Product Details

Brand: Samsung

Series: HSP Duct

Type: Concealed High Static Pressure Ducted Inverter System

Technology: Digital Inverter

Control: Wired controller (optional integration with centralised control systems)

Application: Large offices, hotels, restaurants, commercial buildings, multi-room residential installations

Specifications

Capacity Range: 18,000 | 24,000 | 36,000 | 48,000 BTU (model dependent)

Room Coverage: ~35 m² – 150 m² (depending on duct layout and number of outlets)

Energy Efficiency: High-efficiency inverter operation

Refrigerant: R32

Noise Level: Low operational noise due to concealed placement

Airflow System: Ducted multi-outlet distribution with high static pressure

Mounting Type: Concealed ceiling duct system

Installation

Professional installation is required. The unit must be installed within ceiling voids with appropriate ducting, return air paths, and drainage. Outdoor condenser placement must comply with clearance and ventilation requirements. Proper design of duct runs and outlet sizing is critical for optimal airflow and efficiency.

Warranty

• 5‑Year Warranty on Digital Inverter Compressor
• 2‑Year Warranty on Parts & Components

Who Is This For?

• Large commercial or multi-room residential projects
• Spaces with long duct runs or complex layouts requiring high static pressure
• Clients wanting fully concealed, energy-efficient climate control
• Hotels, offices, and retail spaces needing multiple zone distribution

FAQs

Q: What does “HSP” mean?
HSP stands for High Static Pressure, allowing the unit to push air effectively through long or complex duct runs.

Q: Can this unit serve multiple rooms?
Yes. With a properly designed duct system, it can deliver airflow to multiple zones or rooms.

Q: How is this different from an MSP Duct?
HSP units are designed for longer or more complex duct runs with higher resistance, whereas MSP (Medium Static Pressure) units are for standard duct layouts.
